BM9 Motor

Short Description:
The BM9 hydraulic motor is a heavy-duty, low-speed, high-torque (LSHT) orbital motor distinguished by its robust shaft distribution flow and advanced Geroler gear set design, providing exceptional efficiency, long service life, and high-pressure performance. It is primarily used in demanding applications, such as heavy construction and forestry machinery, where maximum reliability and powerful, sustained torque output are essential.
Send Email

Characteristic Features:

It adapts the gerolor design, which has a higher oil distribution accuracy and mechanical efficiency

Rolling bearing design , which has a greater lateral load capacity

Reliable shaft seal design, which can bear higher pressure and be used in parallet or in series

The forward and reverse direction conversion is convenient and the speed is stable

A variety of connection types of flange, output shaft and oil port.

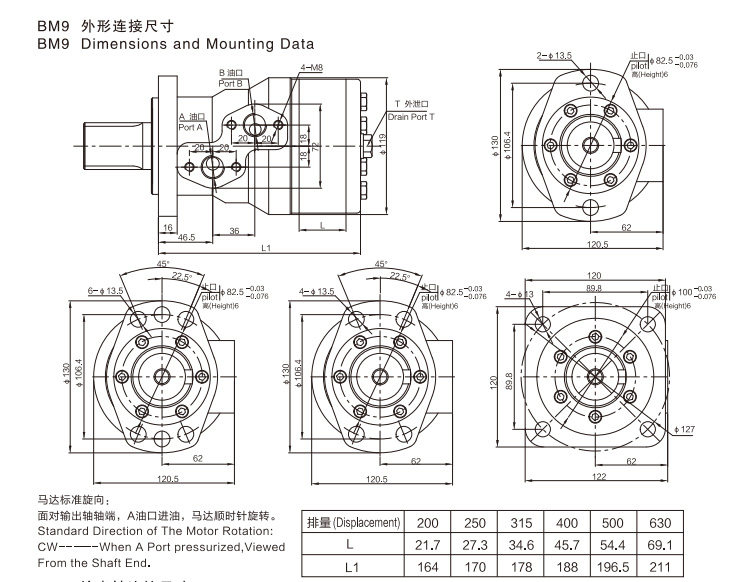

BM9
