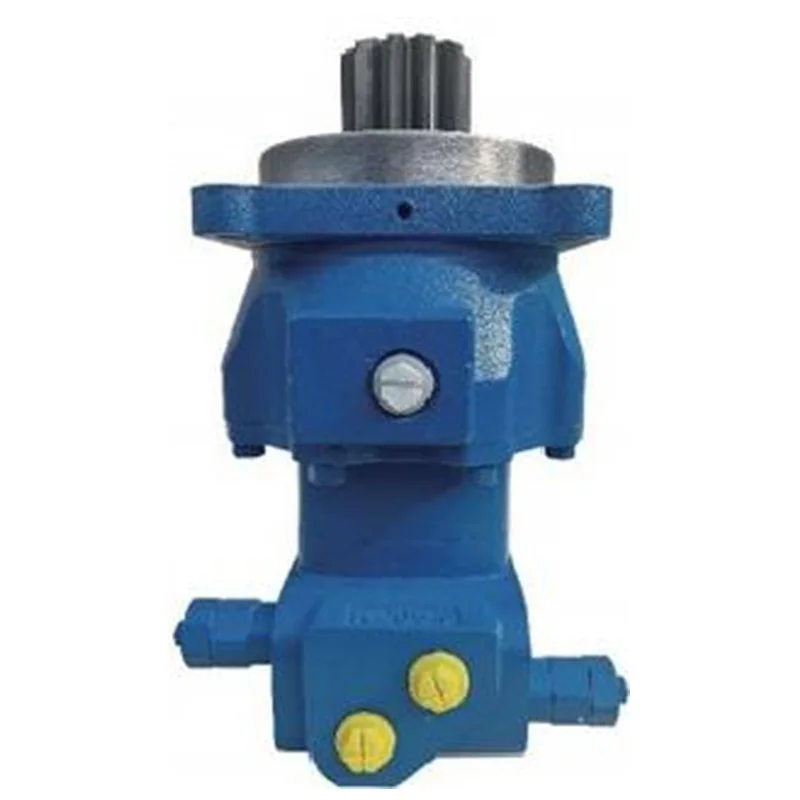

The ZJMS Series is a premium line of end-face flow hydraulic motors engineered for high-pressure environments and demanding industrial applications. Featuring an integrated pinion gear and high-capacity bearings, these motors are specifically designed to maintain exceptional reliability and structural integrity even when subjected to significant radial loads.
Optimized for precision and power, the ZJMS series is the ideal solution for the rotary drive systems of small excavators with a tonnage of less than 2 tons. Its versatile design allows for the seamless assembly of overflow valves and essential blocks directly onto the unit, ensuring efficient integration into complex hydraulic circuits.
| Model Variant | ZJMS-160 / 195 / 245 | Max Speed | 80 RPM |
|---|---|---|---|
| Displacement | 160 / 195 / 245 LPM | Max Pressure | 15 / 13.5 / 11 MPa |
| Max Torque | 375 / 418 / 420 Nm | Brake Torque | 441 Nm |
| Brake Pressure | 2MPa - 4.9Mpa | Drain Line | Max Back Pressure 20bar |
| Applicable Tonnage | Less than 2 Tons | Rotation Direction | CW (Port A) / CCW (Port B) |
Equipped with large capacity bearings to ensure stability under extreme radial loads.
Integrated pinion gear design reduces wear and extends the operational lifespan of the motor.
End-face flow technology allows the motor to operate efficiently at high pressure levels.
Overflow valves can be assembled directly on the motor for a more compact footprint.
Specifically tuned for the rotary drives of mini-excavators under 2 tons.
Available with shockless relief valve and time delay valve options for smooth operation.
Real-time tracking of ZJMS series stocks to ensure rapid delivery.
Expert guidance on hydraulic circuit integration and valve selection.
Rigorous testing of each motor to meet high-pressure industry standards.
Tailored configurations for specific excavator tonnage and torque needs.
Global shipping solutions for hydraulic components and assemblies.
Scheduled service protocols to maximize the lifespan of your hydraulic drive.
| Feature | Standard Motor | ZJMS Series | Business Impact |
|---|---|---|---|
| Radial Load Stability | Moderate | Exceptional | Reduced Downtime |
| Installation Space | Large | Compact | Higher Machine Density |
| Pressure Handling | Standard | High-Pressure | Increased Power Output |
| Component Life | Average | Extended | Lower Replacement Costs |
| Integration Speed | Complex | Direct Assembly | Faster Production Time |
The ZJMS series is specifically optimized for the rotary drive of small excavators with a tonnage of less than 2 tons, providing the necessary torque and reliability for compact machinery.
Through the use of integrated pinion gears and large capacity bearings, the ZJMS series maintains high reliability and structural stability even under severe radial loading conditions.
Yes, the ZJMS design allows overflow valves or other necessary hydraulic blocks to be assembled directly onto the motor for streamlined performance.
A drain line is required for proper operation, and the back pressure in this line should not exceed a maximum of 20 bar (290 psi).
When facing the standard rotary direction at the output shaft end, Clockwise (CW) rotation is achieved when Port A is pressurized, and Counter-Clockwise (CCW) is achieved when Port B is pressurized.
Customers can opt for the inclusion of shockless relief valves and time delay valves to ensure smoother hydraulic transitions and enhanced system protection.
